In the realm of statistical process control and Lean Six Sigma methodology, the ability to accurately interpret data is the thin line between a successful project and a costly failure. When a Green or Black Belt initiates the "Analyze" phase of the DMAIC (Define, Measure, Analyze, Improve, Control) framework, the first point of contact with the data is often a histogram. This visual representation serves as the "Voice of the Process," revealing the underlying rhythm of operations.
However, data sets often present complexities that can mislead the untrained eye. One of the most critical distinctions a practitioner must make is the bimodal distribution histogram vs unimodal explained. Understanding this difference is not merely an academic exercise; it is the fundamental diagnostic step required to identify whether a process is operating under a single set of conditions or is suffering from what we call a "split personality."
The Fundamental Purpose of Distribution Analysis
Before delving into the specifics of "split" processes, one must understand that every process has a natural variation. In a stable, controlled environment, data tends to cluster around a central value. This clustering provides a predictable pattern that allows leadership to make informed decisions.
When we visualize this data, we look for "peaks" or "modes." A mode represents the value that appears most frequently in a data set. The number of modes present in your histogram dictates the "modality" of the distribution, which serves as a primary indicator of process health and stability.
Defining the Unimodal Distribution: The Standard of Stability

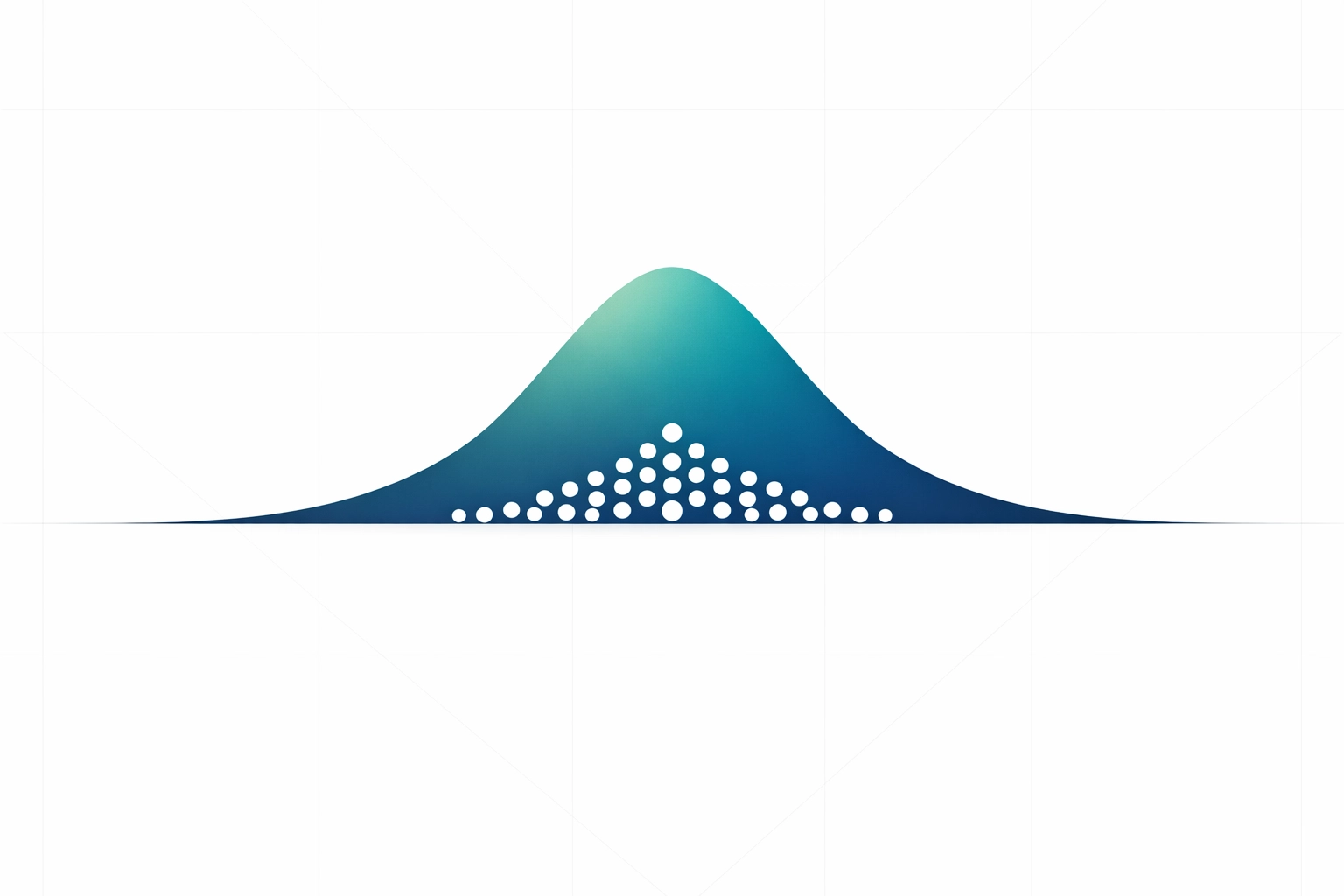

A unimodal distribution is characterized by a single, prominent peak. In this scenario, the data points cluster around one central value, and the frequency of occurrences tapers off as you move further away from that center.
In the context of Six Sigma, the most famous unimodal distribution is the Normal Distribution (or the Bell Curve). In a perfectly unimodal and symmetrical process, the mean, median, and mode all align at the same central point.
Key identifying features of a unimodal distribution include:
- A Single Peak: One clear high point representing the most frequent outcome.
- Continuous Decline: Values decrease steadily in both directions moving away from the peak.
- Predictability: Because the data follows a single trend, practitioners can use standard tools like the Free Six Sigma Calculator to determine Sigma levels and process capability (Cp/Cpk).
Unimodal distributions are the goal for most standard manufacturing and service processes. They indicate that the "inputs" (Machine, Man, Method, Mother Nature, Management, and Measurement) are working in a synchronized fashion to produce a consistent "output."
Defining the Bimodal Distribution: The "Split Personality"
A bimodal distribution occurs when a histogram displays two distinct peaks separated by a "valley" or local minimum. To fully appreciate the nuance of this phenomenon, one must view a bimodal distribution not as one broken process, but as two different processes that have been mistakenly analyzed as one.
When your data shows a "split personality," it is signaling that there are two distinct sub-populations within your data set, each with its own central tendency and variation.
Key identifying features of a bimodal distribution include:
- Two Separate High Points: Two peaks that may be of equal or differing heights.
- A Noticeable Valley: A significant dip in frequency between the two peaks.
- Non-Normal Behavior: Standard statistical tests for normality will fail, rendering traditional Cpk calculations inaccurate.
Why a Bimodal Distribution is a "Red Flag" in Six Sigma
In a Lean Six Sigma project, discovering a bimodal distribution during the Analyze phase is a pivotal moment. It indicates that your data is "polluted" by a significant variable that has not yet been accounted for. If you attempt to calculate the average of a bimodal distribution, you will likely end up with a value that sits in the "valley" between the two peaks: a value that almost never actually occurs in the real process.
The fundamental danger of ignoring a bimodal distribution is that it masks the root cause. For example, if you are analyzing the "Time to Resolve Support Tickets" and see two peaks: one at 10 minutes and one at 60 minutes: the "average" of 35 minutes is a mathematical ghost. It doesn't represent reality.
To gain the skills necessary to identify and rectify these complex data patterns, many professionals pursue advanced training. Our Lean 6 Sigma Hub Green Belt Certification provides the statistical foundation required to navigate these challenges.
Identifying the Causes of the "Split Personality"
The "split" in a bimodal distribution is almost always caused by a categorical difference in how the work is being performed. To fix the process, you must first identify the source of the split. Common culprits include:
- Shift Differences: Data from the Day Shift (Peak A) might be mixed with data from the Night Shift (Peak B), where lighting, temperature, or staffing levels differ.
- Machine Variation: Two different machines performing the same task but calibrated slightly differently.
- Material Batches: Using raw materials from two different suppliers.
- Operator Experience: Highly experienced "Expert" operators (Peak A) vs. "New Trainees" (Peak B).
- Environmental Factors: Processes that behave differently in high humidity vs. low humidity or morning vs. afternoon.
How to Fix a Bimodal Process: The Power of Stratification
The "cure" for a bimodal distribution is a technique called Stratification. This involves breaking the data down into smaller subgroups based on specific factors to see which one eliminates the "split."
Step 1: Data Segmentation
Review your data and assign "tags" to each data point. Was this point from Machine A or Machine B? Was it Monday or Friday? Was it Operator Smith or Operator Jones?
Step 2: Comparative Analysis
Create separate histograms for each tag. If the histogram for Machine A is unimodal and the histogram for Machine B is also unimodal: but centered at a different value: you have successfully identified the "Split Personality."
Step 3: Standardisation
Once the source of variation is identified, the goal is to align the two peaks. In the realm of Lean Six Sigma, this often involves updating Standard Operating Procedures (SOPs) or performing machine maintenance to ensure both sub-populations behave identically. For those looking to lead these high-level organizational changes, a Black Belt Certification is the gold standard.
Hypothetical Case Study: The "Split" Lead Times
Consider a logistics company analyzing the time it takes to process orders. The initial histogram shows a bimodal distribution histogram vs unimodal explained by two peaks: one at 2 hours and another at 5 hours.
- The Mistake: The manager calculates the average lead time as 3.5 hours and sets a KPI based on this number.
- The Six Sigma Approach: A Green Belt stratifies the data by "Order Type." They discover that "Digital Orders" (Peak A) take 2 hours, while "Manual/Phone Orders" (Peak B) take 5 hours.
- The Solution: Instead of trying to improve the "average," the team focuses on automating the phone orders to match the digital process. By removing the manual entry variable, the distribution becomes unimodal, centered at 2 hours.
This type of analysis is a staple in a Lean Six Sigma hypothetical project, where practitioners learn to separate noise from signal.
Tools for Advanced Analysis
When dealing with complex distributions, Lean Six Sigma practitioners utilize several specialized tools to verify their findings:
- Hypothesis Testing: To statistically prove that the means of the two peaks are significantly different. You can explore the future of this field in our article on AI vs Human Analysis in Hypothesis Testing.
- Control Charts: To monitor if the process "flips" between the two states over time.
- Root Cause Analysis (RCA): Utilizing the 5 Whys to determine why the two populations exist in the first place.
For those in leadership roles, managing these distributions requires a bird's-eye view of the organization. A Master Black Belt certification equips you with the enterprise-level toolkit to deploy these strategies across multiple departments.
Conclusion: Mastering the Modality
Distinguishing between bimodal and unimodal distributions is one of the most vital skills in the Lean Six Sigma toolkit. A unimodal distribution represents a process with a clear identity and predictable behavior. Conversely, a bimodal distribution reveals a "split personality" that, if left unaddressed, will lead to inaccurate reporting, poor decision-making, and wasted resources.
By employing stratification and rigorous root cause analysis, you can unify your processes, reduce variation, and achieve the level of excellence that Six Sigma demands.
